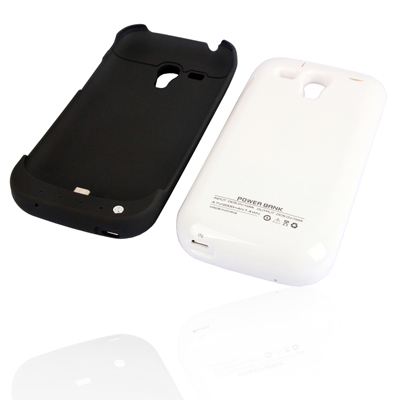

Samsung Power Pack

2000mAh Backup battery case for Samsung Galaxy S3 MINI 8190

Two versions:

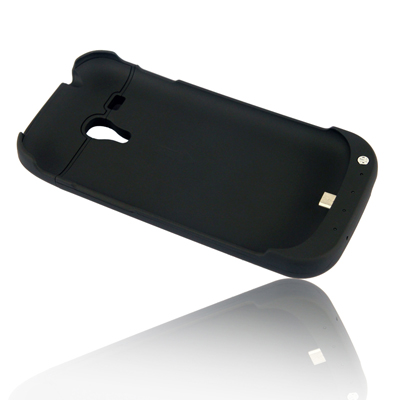

S- SS8190A without leather cover

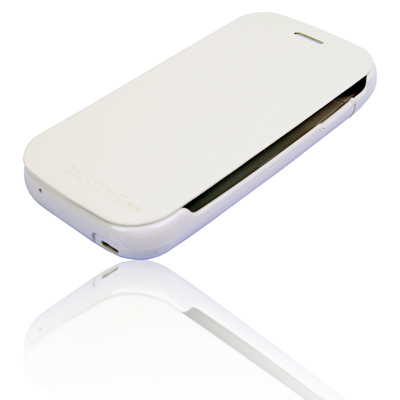

S- SS8190AC with leather cover

Specifications:

• Compatible with: Samsung Galaxy S3 MINI / 8190

• Output voltage: 5V

• Output current: 500mA

• Capacity: 2000mAh

• Input voltage: 3.7V

• Input current: 500mA

• Cell type: Lithium - Polymer battery

• Cycle life: 500times

• Battery charging time: 3 - 5hours

• Color: Black / White

• S-SS9500C Unit weight: 62.9g

• S-SS9500CC Unit weight: 77.9g

• Dimensions: (Length)132mm * (Width)65.3mm * (Thickness)17.8mm

Feature:

• Slide your Samsung Galaxy S3 MINI into the power case and make sure Samsung Galaxy S3 MINI is well connected to Micro 5 Pin dock on the power case.

• ON/OFF switch, press the on/off switch to activate or stop the charging, see the Samsung Galaxy S3 MINI screen to identify the charging signal.

• Battery level, press on/off switch once to check how many juice left, see below indication.

• 1 LED=25%     2 LED=50%    3 LED=75%    4 LED=100%

Charge

• Charging, simply plug in the USB turn micro USB to the micro USB female dock, connect the USB to a powered USB equipment or computer.

• Before installing and using the product, please read the instructions thoroughly, and retain them for future reference.
